Description
solar handpumpe RPS 200 Solar Well Pump Kit – RPS Solar PumpsRPS 200 Solar Well Pump Kit Put the Sun to Work on your land with the famous RPS 200. Over the years has been installed by more farmers and ranchers than any other system we offer, scattered over all 50 states. Two solar panels offer an attractive blend of performance and price giving you up to 1800 gallons a day, and over 500 gallons at 150ft. And to give you more flexibility and peace of mind, batteries or a generator can be used to supplement as
RPS 200 Solar Well Pump Kit
Put the Sun to Work on your land with the famous RPS 200. Over the years has been installed by more farmers and ranchers than any other system we offer, scattered over all 50 states. Two solar panels offer an attractive blend of performance and price giving you up to 1800 gallons a day, and over 500 gallons at 150ft. And to give you more flexibility and peace of mind, batteries or a generator can be used to supplement as needed. The most efficient brushless permanent magnet motors mean no replacement of carbon brushes and years of smooth, reliable performance. Lifetime Rotor Warranty and the only field-serviceable pump available save you thousands over other options.
RPS is a growing 100% American-owned company of friendly, helpful solar water specialists. We are honored and blessed to have such great staff and customers all over this great country.

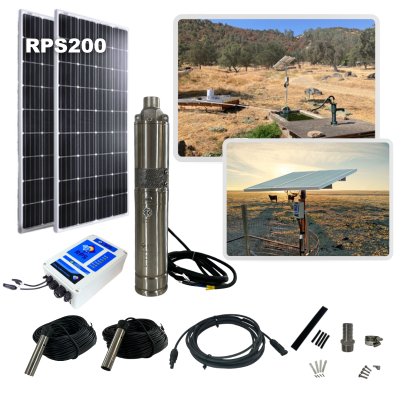

Kit Contents
RPS 200 Kit contains:
- 2x RPS 100 Watt Rugged Aluminum Framed Mono-Crystalline Solar Panels (Dimensions are roughly
- 3.2' long, 1.7' wide and a little more than 1" thick)
- RPS Helical Rotor Pump with DC Brushless Permanent Magnet Motor
- RPS Pump Controller with Industry Leading Efficiency + Smooth Start/Stop
- 3/4" hose barb and hose clamps for use with black poly pipe (or ask for 1" if you prefer)
- 1x Low-water Well Level sensor
- 1x Tank Shut-off sensor
- Solar Panel cable connectors
- Waterproof heatshrink wire splice kit with pre-crimped pump wires
- Detailed full-color solar pump guide with step-by-step install instructions
- Access to RPS video archives of installation tips & product walkthroughs
- Free Access to DIY Success Center - a portal for RPS customers to connect with a huge library of guides and advice from engineers
- 30 Day Money-Back & 100% Water Assurance Guarantee
- Lifetime Rotor Warranty which is only wear part and Field Serviceable
- 2 Year Comprehensive Warranty
- Phone / Email / Text Support from Friendly USA based RPS Engineers
- 20 Year Solar Output Guarantee
- 25 Year Support Guarantee with Reconditioned Swap Pricing
- RapidReplace™ Program*
Solar panel mounting is not included in the standard RPS 400 system, you can purchase one of our easy-to-install Top of Pole mounts or a Turnkey Kit for a complete DIY experience.
Component Dimensions:
|
Solar Panels: 38.6” x 20.9” x 1.18”, 100W / 12V, ~15lbs Each Well Pump: 2.9" OD, 21" Long, 3/4" FNPT Outlet ~14lbs Controller: 13” x 8” x 6”, ~10lbs |
Downloads:
RPS 200 SPEC SHEET.PDF 📄
100W SOLAR PANEL SPEC SHEET.PDF 📄
Optional Add-ons and Upgrades:
|
Pump Kit Only +Add to Cart |
Pump Kit + Turnkey Kit +Add to Cart |
Pump Kit + 2P Mount Kit +Add to Cart |
|
| RPS Solar Pump & RPS Solar Controller |
✅ | ✅ | ✅ |
| Solar Panels 100W Aluminum Frame |
✅ | ✅ | ✅ |
| Solar Panel Mounting Adjustable Tilt Pole Mount |
✅ | ✅ | |
| Controller Mounting 2” or 4” Post Straps & Plates |
✅ | ||
| Controller Mounting Tabs & Lags for Plywood |
✅ | ✅ | ✅ |
| Solar Wire Two 20’ Lengths with MC4s |
✅ | ✅ | ✅ |
| Steel Post + Cement 2-3/8” OD or 4.5” OD Pipe |
Customer Supplied | Customer Supplied | Customer Supplied |
| 12-3 Pump Wire 6’ + butt crimps on pump |
✅ 100’ or 200’ or 300’ |
|
|
| Pump Wire Splice Kit With Wire Labels |
✅ | ✅ | ✅ |
| Low Water Sensor + Wire |
✅ 100’ |
✅ 100’ or 200’ or 300’ |
✅ |
| Tank Full Sensor + Wire |
✅ 100’ |
✅ 100’ |
✅ |
| Sensor Wire Splice Kit |
✅ | ✅ | ✅ |
| Safety Rope Yellow No-Decay Twisted Poly |
✅ 100’ or 200’ or 300’ |
||
| Black Poly Pipe 160psi Rated |
✅ Choose ¾” or 1” |
||
| Pump-to-Poly Pipe Barbed Coupling + Hose Clamps |
✅ | ✅ | ✅ |
| Well Seal SS Plumbing All Stainless with barb & tee |
✅ | ||
| Standard Well Seal |
✅ Choose 4”, 5”, 6” or 8” |
||
| Grounding Lug for controller |
✅ | ✅ | ✅ |
| Bare copper wire roll & Grounding Clamp |
✅ | ||
| Grounding Rod 4’ or 8’ if required by code |
Customer Supplied | Customer Supplied | Customer Supplied |
| Teflon Tape For SS plumbing |
✅ | ||
| Electrical tape For bundling pipe/rope/wire |
✅ | ||
| Digital Multimeter For testing voltages if needed |
If Requested | ||
| Our Award Winning RPS Support Team if you need us! | ✅ | ✅ | ✅ |
|
|
Pump Kit Only +Add to Cart |
Pump Kit + Turnkey Kit +Add to Cart |
Pump Kit + 2P Mount Kit +Add to Cart |
Sizing
Gallons to Expect from RPS 200
* GPD Based on a 6 hour solar pumping day
| Gallons Per Day (GPD) | GPM | |
| No head | 1836 | 5.1 |
| 25 ft | 1692 | 4.7 |
| 50 ft | 1584 | 4.4 |
| 75 ft | 1188 | 3.3 |
| 100 ft | 1116 | 3.1 |
| 125 ft | 756 | 2.1 |
Complete the Sizing Step of the WATER ASSURANCE PLAN™ with any RPS Team Member at 888-637-4493 and RPS Guarantees Water From Your Pump After Proper Installation or Your Money Back! Start Sizing Now »
